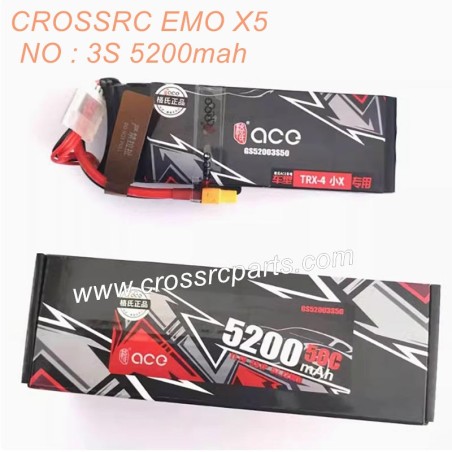

CROSSRC EMO X5 1/8 RC Remote Control Car Parts Grizzlie 3S 5200mah

Core parameters of CROSSRC EMO X5 Grizzly 3S 5200mAh battery:

• Type: Lithium polymer (Li-Po)
• Nominal voltage: 3S (11.1V, fully charged about 12.6V)
• Capacity: 5200mAh
• Discharge rate: 50C (instantaneous maximum discharge current: 5200mAh × 50 = 260A)
• Dimensions: about 138mm × 47mm × 25mm (need to confirm compatibility with EMO X5 battery compartment)
• Plug: T-Plug (need to match the original car interface, some versions may require adapter cable)
• Weight: about 350g (lightweight design, reduce the burden on the body)

Performance of CROSSRC EMO X5 Grizzly 3S 5200mAh battery:

1. Power output: Compared with 6S battery, the power is reduced by about 40%-50%, and the climbing angle and acceleration performance are limited.

2. Temperature control performance: It may generate heat at high discharge rates. It is recommended to check the temperature after continuous use (the recommended temperature control threshold is ≤60℃).

3. Balance charging: A Li-Po balance charger that supports 3S is required. The recommended charging rate is 2C (about 10.4A). The recommended full voltage is 11.4V (3.8V per cell).

How to use the CROSSRC EMO X5 Grizzly 3S 5200mAh battery?

1. It is preferred to be used for low-speed cruising, light off-road or indoor venues.

2. Avoid using it in complex climbing terrain (such as slopes above 45°), which is easy to trigger low-voltage protection.

3. Use a genuine balance charger to avoid overcharging or over-discharging.

4. The storage voltage is recommended to be 3.85V per cell (total voltage 11.55V). Long-term storage requires recharging every 3 months.

5. Power upgrade: Replace with Grizzly 6S 5200mAh (must confirm that ESC supports 6S).

6. Balanced performance: Choose 4S 5200mAh (gear ratio or motor parameters need to be adjusted).

Comparison between Grizzly 3S 5200mAh battery and Leopard 3S 5200mAh:
